Review: Kohjinsha SC3

Kohjinsha_sc3_review

The Kohjinsha SC3 series is the company’s newest 7-inch mini notebook line and one of the first Menlow-based ultraportables to begin shipping in the world. Announced in Japan last month and launched on July 11th, the series includes built-in GPS, a swiveling widescreen touch panel, ExpressCard/34 and 3-in-1 memory card slots, upgradeable RAM, a redesigned casing that’s more compact than ever before, and of course the long-awaited Intel Silverthorne (now Atom) processor and Poulsbo chipset pairing.

My new friends at Conics.net were kind enough to send me a best-in-class SC3 for review, and I put it under scrutiny immediately. Let me show you everything, and I do mean everything, I found below.

System Specifications

Several configurations comprise the Kohjinsha SC3 series. My review unit from Conics is the top-of-the-line model (SC3WP06GA), which includes a 2GB memory upgrade (+$73) and has the following specs:

CPU:
1.33GHz Intel Atom Z520 (Silverthorne)
Chipset: Intel SCH US15W (Poulsbo)
RAM: 2GB DDR2-533 (1GB standard, upgradeable)
OS: Windows Vista Home Premium
Storage: 60GB HDD
Display: 7” swiveling touchscreen (1024 x 600)
Wireless: 802.11b/g, Bluetooth 2.0+EDR, GPS, 1seg tuner
Size: 7.44" x 6.10" x 1.00"-1.30"
Weight: 1.76 lbs.
Colors: Black or white

Box Contents

Included in the box with the SC3 is a full set of accessories.

Kohjinsha_sc3_cont1

In addition to a standard-capacity battery (not shown), the unit ships with a cushioned slipcase (Velcro closure), white leather strap, AC adapter and power cord, GPS antenna, and 1seg TV antenna.

Kohjinsha_sc3_cont2

Japanese manuals/paperwork, Vista Home Premium quick start guide, and GrandMap PC Navi CD (Japanese map software for use with GPS) are also supplied.

Design

Though the Kohjinsha mini notebooks have not undergone drastic cosmetic changes from one generation to another, the SC3 series is by far the most sophisticated and stylish.

Kohjinsha_sc3_design

Its silvery white casing and silver accents have a light shimmer on them that make the device look much sleeker than previous models. Likewise, build quality is absolutely superb; everything feels really solid and expensive.

Someone I showed it to even asked if it was a new UMPC from Sony. I don’t know how Kohjinsha would feel about that, but I took it as high praise for them, as Sony is renowned for its beautiful designs and top-notch hardware quality.

Kohjinsha_sc3_rubber

I don’t care for the rubber nubbins on the top of the unit, but they allow the lid to rest softly on the keyboard when the display is rotated for tablet use.

Size

Kohjinsha_sc3_size

Even more striking than the SC3’s design, however, is its ultra compact size. For a unit with a 7-inch screen, it’s tiny. I seriously couldn’t believe how small it was when I took it out of the box. It’s significantly smaller than the Asus Eee PC, HTC Shift, Samsung Q1 Ultra, older Kohjinsha devices, and any other 7-inch UMPC/handtop out there.

Kohjinsha_sc3_handle1

Kohjinsha_sc3_handle2

It’s so small, in fact, that you can carry it around like a handbag!

For a less girly reference, here are some comparison photos of the SC3 with the other UMPCs I have at home.

Kohjinsha_sc3_comp

Kohjinsha SC3 vs. Fujitsu LifeBook U810 (5.6" screen)

Kohjinsha_sc3_fuji

Kohjinsha_sc3_fuji2

Kohjinsha_sc3_fuji3

Kohjinsha SC3 vs. HTC Shift (7" screen)

Kohjinsha_sc3_shift1

Kohjinsha_sc3_shift2

Kohjinsha_sc3_shift3

Kohjinsha SC3 vs. Sony Vaio UX (4.5" screen)

Kohjinsha_sc3_ux1

Kohjinsha_sc3_ux2

Kohjinsha_sc3_ux3

Display

One of the most noticeable design improvements of the SC3 over its predecessors is the reduced size of the screen bezel. Previous 7-inch-screened Kohjinsha models had thick bezels, which were useful for versatile hardware-control placement but generally detracted from the units’ appearance.

Kohjinsha_sc3_splash

The thinner bezel helps the LED-backlit display seem quite large and makes the design look well thought out. Wider bezels often lead consumers to complain about wasted space and question why a bigger screen wasn’t used instead, so the SC3 has already nipped those gripes in the bud.

Kohjinsha_sc3_swivel

As with previous models, the SC3’s 7-inch display swivels and rotates on a sturdy metal base that could actually benefit from being loosened. Consistent with the overall build quality of the device, the hinge is incredibly solid and secure (nothing flimsy or fragile) and feels immune to accidental damage.

Kohjinsha_sc3_screen_flat

Kohjinsha_sc3_tablet

The display is rotatable and can lay completely flat either above (for thumb typing) or on top of (for tablet use) the keyboard.

Kohjinsha_sc3_rotate

Screen rotation is adjustable through a software setting. Regardless of its orientation, the display is bright, crisp, and easy to read. 1024 x 600 resolution on a 7-inch screen is a great match.

Controls

A consequence of the smaller screen bezel is less space for hardware controls. While earlier Kohjinsha models had mouse buttons and a pointer flanking their displays, making slate and two-handed use easy, the SC3 must rely on its touchscreen when the keyboard is not exposed.

Kohjinsha_sc3_stylus1

Kohjinsha_sc3_stylus2

The screen responds to fingernails just fine but because Vista is not optimized for finger use, the included stylus (or any other stylus you have on hand) is a better choice. The SC3’s touch panel is nicely responsive and doesn’t require additional taps or unnecessary force to perform the desired action.

Although there aren’t any navigational controls surrounding the display, the bezel isn’t completely devoid of anything useful.

Kohjinsha_sc3_cam

Kohjinsha_sc3_bright

On the left side of the screen are a 1.3-megapixel web camera and multifunction button that can be set to adjust brightness levels, page up/down, control volume, or zoom in/out. Toggling between these functions is done using the Fn+F9 keyboard shortcut.

Kohjinsha_sc3_1seg

Kohjinsha_sc3_antenna

Beneath the multifunction button is a port for the 1Seg TV antenna, which is only useful in Japan and works in conjunction with the telescoping antenna built into the top right corner of the display.

Kohjinsha_sc3_led

At the top of the bezel is a set of indicators that illuminate when the Bluetooth or Wi-Fi is enabled and when the SC3 is plugged into an AC outlet.

Kohjinsha_sc3_speakers

Completing the tour around the SC3’s display are two speakers located at the bottom of the panel. The speaker volume, though low, is suitable for personal listening.

Kohjinsha_sc3_trackpad

Other than the keyboard, which is discussed in its own section below, the only navigational control is the touch pad and mouse buttons below it. The touch pad is 2 inches long, which makes it about 80% the size of the touch pad on my 11.1-inch Sony Vaio TZ notebook. Although it’s smaller than most are accustomed to, it’s still usable and responsive. The left and right mouse buttons below it are easy to press and provide good tactile and soft audible feedback.

And that about does it for the Kohjinsha SC3 controls.

Now let’s take a look at the rest of the I/O ports and interfaces on the unit.

Kohjinsha_sc3_back

On the back are a covered RJ-45/Ethernet port, battery compartment, and power port.

Kohjinsha_sc3_left

One of two Kensington locks, USB 2.0 port, VGA port, headphone and microphone jacks, volume rocker, stylus slot, and an external GPS antenna port can be found on the SC3’s left side.

Kohjinsha_sc3_right

An air vent, 3-in-1 memory card reader, ExpressCard/34 slot, covered USB 2.0 port, and the second Kensington lock are located on the right side of the unit.

Kohjinsha_sc3_front

Kohjinsha_sc3_power

On the front are a microphone, various LED indicators, power switch, air vents, and wireless radio on/off switch.

Compared to other UMPCs, all that the Kohjinsha SC3 is really missing are a biometric fingerprint scanner, some user-defined buttons, and maybe an optical mouse for better slate-mode navigation.

Keyboard

The biggest benefit of the SC3’s mini notebook form factor is, undoubtedly, the keyboard. Clamshell designs allow a QWERTY keyboard to be almost the same size as the device itself, whereas slider-style UMPCs generally have thumboards about half the size of a gadget’s height and slates either have no keyboard or split keypads.

Kohjinsha_sc3_laptop

Kohjinsha_sc3_btkb

The size advantage makes data input faster because those with small hands can probably touch-type and others can hunt-and-peck with relative ease. After only a short bit of practice, I was able to type at 63% of my normal touch-typing speed on the SC3 using two or three fingers on each hand. UPDATE: Watch me take a one-minute typing test.

Kohjinsha_sc3_kbcomp

You can see in my mobile device keyboard typing speed chart that this puts the SC3 right between the HTC Shift a nd Fujitsu LifeBook U810.

Kohjinsha_sc3_keyboard1

The 84-key Japanese/English keyboard has a mostly standard US layout that is easy to get used to. Some of the punctuation keys are rearranged, but it doesn’t take long to memorize where they are.

Kohjinsha_sc3_keyboard2

Kohjinsha_sc3_keyboard3

I don’t know the pitch (distance between keys) or stroke (distance a key moves when pressed) of the SC3 keyboard, but neither is problematic. Typing for extended periods becomes uncomfortable, but light to moderate input sessions can be done with little to no ill effect on the fingers, hands, wrists, and/or forearms.

Connectivity

The Kohjinsha SC3 lacks integrated 3G connectivity, but it has 802.11b/g Wi-Fi, Bluetooth 2.0+EDR, and GPS. Note that the base configurations (SC3KP06A and SC3WP06A) do not have Bluetooth or GPS.

Kohjinsha_sc3_screen

Wi-Fi signal strength is great, allowing me to connect with ease to my home network from a room that other mobile devices sometimes have trouble seeing the router in. The SC3 uses a Bluetooth chip from Cambridge Silicon Radio (CSR) that has successfully paired with every single Bluetooth-enabled device I’ve thrown at it (mobile phones, headsets, computer peripherals, MP3 players, etc.).

Kohjinsha_sc3_gps

Since the SC3 is only available in the US through importers like Conics, it does not come with English map software to use with its internal GPS. Instead, the device ships with GrandMap PC Navi (Japanese software), which isn’t useful outside of Japan.

Kohjinsha_sc3_gpsmon1

Kohjinsha_sc3_gpsmon2

Free and paid GPS software is plentiful online, so I downloaded Infix Technologies’ GPSMonitor to give the SC3’s GPS a try from my high-rise condo. I put the antenna (that square thing in one of the photos) near a window, plugged the other end into the extending port, and launched GPSMonitor. I was found within minutes (eep!).

I haven’t tried using the SC3 in the car, but I suspect that it would perform flawlessly with the right software (GPSMonitor isn’t a turn-by-turn app). My Garmin GPS unit can’t even find me when I’m inside!

Performance

Since the Kohjinsha SC3 series is one of the first Menlow-based devices to become available, many are anxious to see how the previously codenamed Silverthorne CPU and Poulsbo chipset perform under the weight of Windows Vista.

Kohjinsha_sc3_vista_atom

Keeping in mind that my review unit has 2GB of memory installed, Vista Home Premium SP1 runs extremely well on the 1.33GHz Atom processor. I’d even go so far as to say that it’s downright zippy and on par with what I’m used to (which isn’t much). I’ve experienced no disk thrashing, lagging, or slow-loading menu items and icons. Anyone expecting Vista to perform on the Atom the way it did on the A110 will be pleasantly surprised.

The SC3 gets unbearably warm when running on AC power and when in use for about an hour or so. Even when the system is being taxed, though, the unit runs so quietly that I’ve actually had to put my ear next to the air vents to check if the fans were working.

Benchmarks

These don’t mean anything to me personally, but since I know how much you guys love benchmark results, here they are.

Windows Experience Index

Kohjinsha_sc3_wei

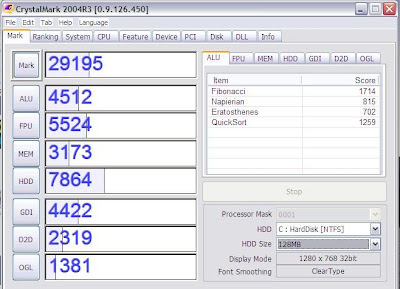

CrystalMark 2004R3

The SC3’s 60GB hard drive is partitioned (C: 31.4GB, D: 24.4GB) so I ran CrystalMark 2004R3 on both.

Kohjinsha_sc3_crystalmark_c

Kohjinsha_sc3_crystalmark_d

3DMark03

Kohjinsha_sc3_3dmark

Kohjinsha_sc3__3dmark_details

For more CPU and GPU test results, take a look at this updated Kohjinsha SC3 review thread in the new Pocketables Forum.

Video Playback

I don’t watch too many online videos, but I’d be remiss if I didn’t discuss how Menlow gets along with Flash video sites like YouTube, Hulu, Veoh, and Vimeo. Better yet, I’ll show you. Please excuse the excessive background noise (my Handycam’s mic is overly sensitive).

I realize that demonstrating video quality using a video of a video is problematic, but it’s the next best thing to seeing it in person.

UPDATE 8.5.08: QuickTime HD playback video demo now available.

Battery Life

Kohjinsha has given the SC3’s standard li-ion battery (7.4V, 2600mAh) a runtime estimate of 3.2 hours, but my usage (Wi-Fi and Bluetooth on, GPS off, screen at mid-brightness, web browsing with Firefox 3) returns about 2.5 hours. Unimpressive.

Kohjinsha_sc3_battery

A high-capacity battery (7.4V, 5200mAh) with a runtime of 6.4 hours is available separately. Like with the Fujitsu U810, however, this extended battery will stick out of the back of the SC3 and add some weight to the device. Aesthetics versus function, I guess.

Conclusion

Kohjinsha_sc3_umpc

The Kohjinsha SC3 has come such a long way from the original SA1 series from 2006 that it’s hard to believe they’re actually related. Everything the SA1 did wrong, the SC3 does right . . . and then some! It looks fantastic, is more compact than any other 7-inch UMPC around, has an excellent keyboard and a good selection of ports/features, and performs well under Vista. Battery life is a bit lacking and the unit gets very warm after a bit of use, but all things considered, there is very little to complain about.

If this is what we can expect from all Menlow-based devices, then there’s definitely a lot to look forward to.

The Kohjinsha SC3 can be purchased now from Conics for between $900 (SC3KP06A/SC3WP06A – no Bluetooth or GPS) and $1000 (SC3KP06GA/SC3WP06GA). A 2GB memory upgrade (+$73), other configuration options, and accessories are also available.

UPDATE 7.28.08: I’ve decided to buy the SC3 so if you have any questions or requests, let me know in the comments or in the new forum.
